New paths are created by walking them. The groundbreaking performance of this newly developed linear motor stage is characterized by its integrated compactness, achieved through the seamless incorporation of the servo controller, wiring, and cable management. This leap in design efficiency sets a new standard for miniaturization, enabling designers to construct machines and automated systems that are more compact and space-efficient. In contrast to traditional timing belts and spindle drives, this directly driven linear motor stage offers greater precision, speed, and quiet operation
The axis includes Ethernet bus coupling with various protocols and connects directly to the PLC. Together with the PLCopen libraries, the axis can now be easily moved in Cyclic synchronised mode or Profile position mode.
With the connection to the 12V DC supply the axis is immediately ready for operation.
The absolute measuring system allows an immediate start without prior referencing.
Specific advantages, USP's

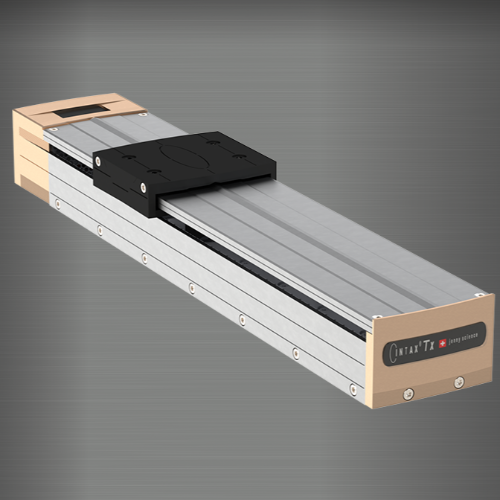

Completely integrated linear motor axis INTAX® Tx
Servo controller integrated
Linear Motor cabling integrated
Cable chain integrated
Only two connections
Ethernet Bus with various protocol stacks
12 - 36V DC power supply
